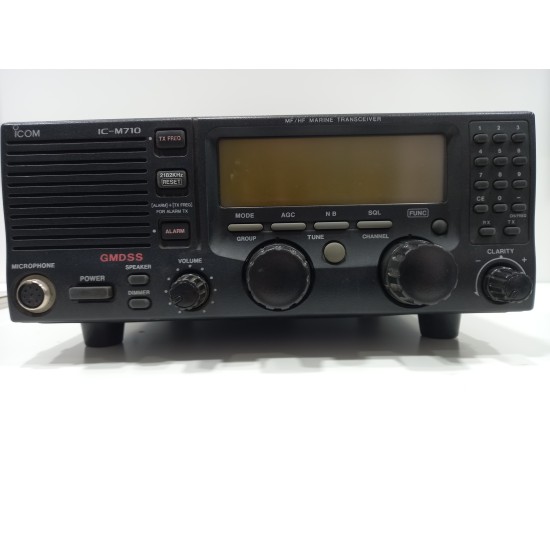

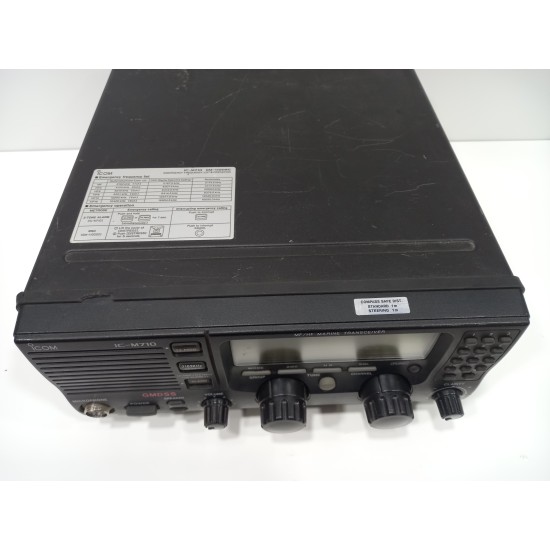

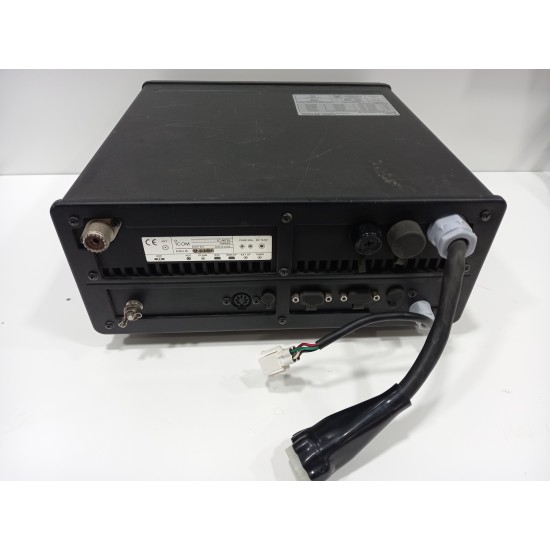

IC-M710 MF/HF Marine Transceiver (USED)


150, 60, 20 W PEP (selectable)

(60 W only for 25 MHz band)

Sensitivity

J3E, R3E, J2B, F1B, A1A

(for 12 dB SINAD)

H3E

(for 10 dB S/N)

0.5 μV (1.8–29.9999 MHz)

1 μV (1.6–1.7999 MHz)

6.3 μV (0.5–1.5999 MHz)

3.2 μV (1.8–29.9999 MHz)

6.3 μV (1.6–1.7999 MHz)

32 μV (0.5–1.5999 MHz)

J3E (USB), H3E, R3E, J2B (AFSK), F1B (FSK) R3E, A1A (CW)
available modes may differ depending on version

Max. current drain

(at 13.6 V DC)

Transmit at max power 30 A

Receive at max. AF output 2.5 A (negative ground type)

Receive at max. AF output 3.0 A (floating ground type)

291.4 × 116.4 × 315 mm

11¹⁵⁄₃₂× 4¹⁹⁄₃₂× 12¹³⁄₃₂ in
